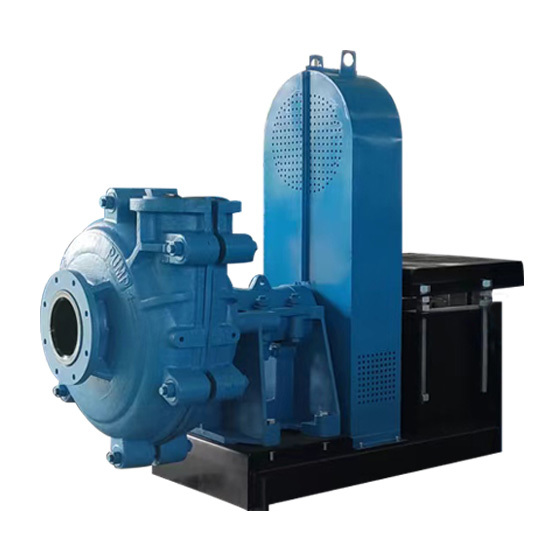

DH Slurry Pump

DH Slurry Pump

Capacity: to 5400 m³/h
Head: to 118 m
Liner Material: Metal
Pump Type: Horizontal
Double pump casing structure. High efficiency, wear resistance, stable performance, strong parts interchangeability, wear-resistant metal can be used for lining and impeller materials, the pump outlet direction can be rotated at 45° intervals to install and use at eight different angles, can be multi-stage series, belt drive, direct drive. The shaft seal can be a packing seal, auxiliary impeller seal or mechanical seal. The rotation direction of the pump is clockwise from the drive end. It is suitable for conveying highly abrasive and high-concentration slurries in metallurgy, mining, coal, power and other industries, such as raw ore, middlings, concentrates, tailings, etc. in black and non-ferrous mines.
DHR Slurry Pump

DHR Slurry Pump

Capacity: to 5400 m³/h
Head: to 118 m
Liner Material: Rubber
Pump Type: Horizontal
Double pump casing structure. High efficiency, wear resistance, stable performance, strong parts interchangeability, lining and impeller materials are made of wear-resistant rubber, the pump outlet direction can be rotated at 45° intervals to install and use at eight different angles, can be multi-stage series, belt drive, direct drive. The shaft seal can be a packing seal, auxiliary impeller seal or mechanical seal. The rotation direction of the pump is clockwise from the drive end. It is suitable for conveying highly abrasive and high-concentration slurries in metallurgy, mining, coal, power and other industries, such as raw ore, middlings, concentrates, tailings, etc. in black and non-ferrous mines.
DM Slurry Pump

DM Slurry Pump

Capacity: to 7920 m³/h
Head: to 59 m
Liner Material: Metal
Pump Type: Horizontal
DM pump is a cantilever, horizontal centrifugal slurry pump, suitable for conveying low-abrasive, low-concentration slurry in metallurgy, coal, building materials and other industrial sectors. The shaft seal of this type of pump adopts two forms: packing seal and centrifugal seal. This type of pump operates at a high speed, so it is small in size and saves floor space. The pump body has a replaceable wear-resistant metal lining, and the impeller is made of wear-resistant metal.
DMR Slurry Pump

DMR Slurry Pump

Capacity: to 7920 m³/h
Head: to 59 m
Liner Material: Rubber
Pump Type: Horizontal
DM pump is a cantilever, horizontal centrifugal slurry pump, suitable for conveying low-abrasive, low-concentration slurry in metallurgy, coal, building materials and other industrial sectors. The shaft seal of this type of pump adopts two forms: packing seal and centrifugal seal. This type of pump operates at a high speed, so it is small in size and saves floor space. The pump body has a replaceable wear-resistant rubber lining, and the impeller is made of wear-resistant rubber.
DV Slurry Pump

DV Slurry Pump

Capacity: to 1267 m³/h
Head: to 40 m
Liner Material: Metal
Pump Type: Vertical
The DV submersible pump is a vertical centrifugal slurry pump, immersed in liquid, used to transport corrosive, coarse particles, and high-concentration slurries. It does not require any shaft seals or shaft seal water, and can work normally even under conditions of insufficient suction. The flow-through parts are made of wear-resistant metal. The "L" letter in the model is a submersible pump of the extended shaft series, which can be used in conditions with deeper liquid levels. This type of pump adds a guide bearing structure on the basis of the standard, which makes it run more smoothly and is more widely used. However, flushing water is required at the guide bearing position.
DVR Slurry Pump

DVR Slurry Pump

Capacity: to 285 m³/h
Head: to 36 m
Liner Material: Rubber
Pump Type: Vertical
The DVR submersible pump is a vertical centrifugal slurry pump, immersed in liquid, used to transport corrosive, coarse particles, and high-concentration slurries. It does not require any shaft seals or shaft seal water, and can work normally even under conditions of insufficient suction. The flow-through parts are all lined with rubber, suitable for conveying abrasive slurries without edges and corners. The "L" letter in the model is a submersible pump of the extended shaft series, which can be used in conditions with deeper liquid levels. This type of pump adds a guide bearing structure on the basis of the standard, which makes the operation more stable and more widely used. However, flushing water is required at the guide bearing position.
DF Slurry Pump

DF Slurry Pump

Capacity: to 670 m³/h
Head: to 30.2 m
Liner Material: Metal
Pump Type: Vertical
DF foam pump adopts double pump shell structure. It is highly efficient, wear-resistant, stable in performance, and has strong parts interchangeability. The lining and impeller materials can be made of wear-resistant metal or rubber. The vertical structure does not require sealing, and the material box can be lined with rubber. The transmission method can be direct connection or belt drive. The rotation direction of the pump is clockwise when viewed from the drive end.
DHF Slurry Pump

DHF Slurry Pump

Capacity: to 670 m³/h
Head: to 30.2 m
Liner Material: Metal
Pump Type: Horizontal
The DHF foam pump adopts a double pump shell structure. It is highly efficient, wear-resistant, stable in performance, and has strong parts interchangeability. The lining and impeller materials can be made of wear-resistant metal or rubber. The horizontal structure has a small installation space and can transport slurries with larger flow and higher head. The transmission method can be direct-connected or belt-driven. The rotation direction of the pump is clockwise when viewed from the drive end.
DG Slurry Pump

DG Slurry Pump

Capacity: to 28000 m³/h
Head: to 75 m
Liner Material: Metal
Pump Type: Horizontal
DG series gravel pump is single-stage, single-suction, cantilever, horizontal structure. This pump is a single-shell pump. Grease lubrication and thin oil lubrication are used for continuous conveying of highly abrasive materials that are too large to be conveyed by ordinary slurry pumps. Among them, DGH is a high-lift gravel pump. The flow-through parts of this pump are made of hard nickel, high chromium and other wear-resistant materials. The discharge direction of the pump can be at any position of 360°, with the advantages of easy installation and use, good cavitation resistance, and wear resistance. The rotation direction of the pump is clockwise from the drive end.
DSC Desulfurization pump

DSC Desulfurization pump

Capacity: to 9800 m³/h
Head: to 27 m
Liner Material: Metal
Pump Type: Horizontal
Double pump casing structure. High efficiency, wear resistance, stable performance, strong parts interchangeability, pump body, cover plate and joint plate are pressure-bearing parts, made of ductile iron; metal lining: impeller, jacket, front guard plate, rear guard plate, suction cover are duplex stainless white cast iron.
