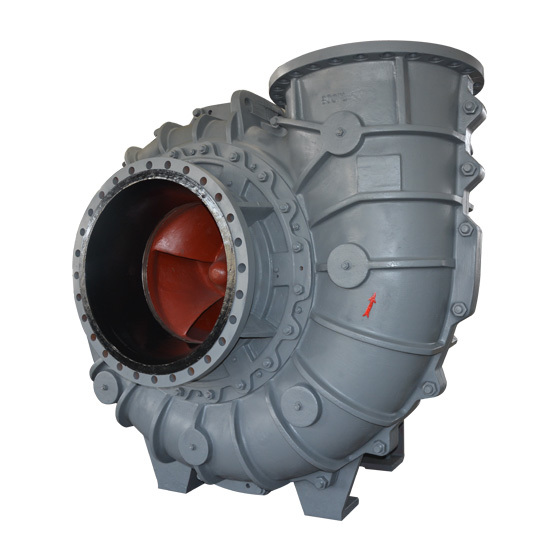

DSCR Desulfurization pump

1. DSCR series desulfurization pumps are single-stage single-suction horizontal centrifugal pumps, which are mainly used as circulating pumps of absorption tower in wet FGD units and have the advantages of wide flow range, high efficiency and energy saving.
2. The compact structure of this series of pumps can greatly save the occupied space.
3. The flow parts of the pump adopt advanced hydraulic model and are optimized by CFD flow simulation technology, so that their design is reliable and their operation efficiency is high.
4. In the structure of rubber pump: The front guard plate of impeller is double phase stainless white iron, the front guard plate and the back guard plate are made of natural rubber suction cover and ductile iron adhesive, which has natural good wear-resistant performance, light weight and relatively low cost.
5. Adjusting the bearing assembly can change the position of the impeller in the pump chamber so that the pump unit is always in a high-efficiency running state.
6. The pump is a rear-detachable structure, with simple structure and convenient maintenance. There is no need to disassemble the inlet pipeline of the pump.
7. Double row tapered roller bearings are used at the pump end, and cylindrical roller bearings are used at the driving end. The thin oil lubrication improves the working conditions of bearings and greatly prolongs the service life of bearings.
8. The mechanical seal is a container seal specially used for desulfurization process, which runs reliably.

Email:

Phone:

隐藏域元素占位

Parameters and Selection

500DSC

500DSCR

600DSC

600DSCR

700DSC

700DSCR

800DSC

800DSCR

Model

500DSC

Capacity

3900 m³/h

Head(TDH)

26 m

Allowable Max. Power

Speed

740 r/min

NPSH

5 m

Max. Efficiency

85 %

Model

500DSCR

Capacity

3900 m³/h

Head(TDH)

26 m

Allowable Max. Power

Speed

740 r/min

NPSH

5 m

Max. Efficiency

85 %

Model

600DSC

Capacity

6300 m³/h

Head(TDH)

26 m

Allowable Max. Power

Speed

650 r/min

NPSH

4.1 m

Max. Efficiency

88 %

Model

600DSCR

Capacity

6300 m³/h

Head(TDH)

26 m

Allowable Max. Power

Speed

650 r/min

NPSH

4.1 m

Max. Efficiency

88 %

Model

700DSC

Capacity

7600 m³/h

Head(TDH)

27 m

Allowable Max. Power

Speed

560 r/min

NPSH

4.3 m

Max. Efficiency

87 %

Model

700DSCR

Capacity

7600 m³/h

Head(TDH)

27 m

Allowable Max. Power

Speed

560 r/min

NPSH

4.3 m

Max. Efficiency

87 %

Model

800DSC

Capacity

9800 m³/h

Head(TDH)

27 m

Allowable Max. Power

Speed

550 r/min

NPSH

5.2 m

Max. Efficiency

90 %

Model

800DSCR

Capacity

9800 m³/h

Head(TDH)

27 m

Allowable Max. Power

Speed

550 r/min

NPSH

5.2 m

Max. Efficiency

90 %

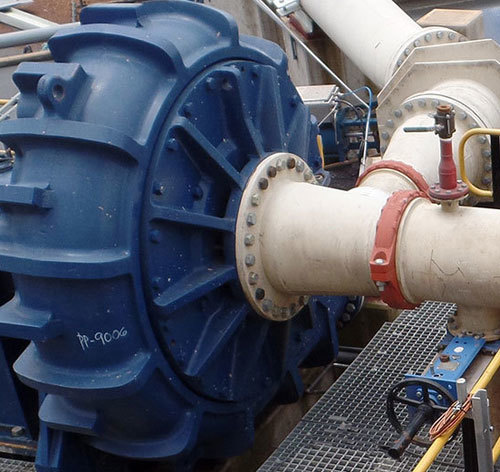

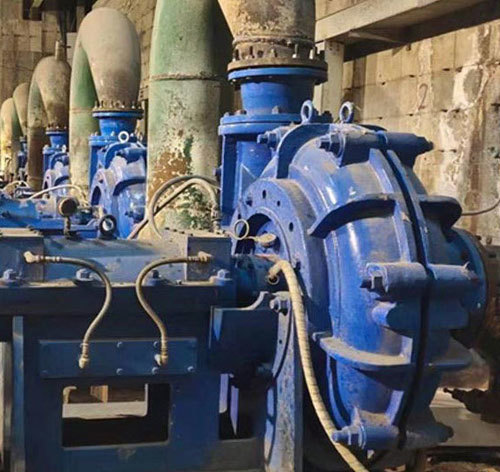

Application and Reference

DSC power plant desulfurization and sintering machine desulfurization process.

Typical Application:

★ Sulfuric acid phosphate fertilizer industry
★ Nonferrous metal smelting industry
★ Chlor-alkali industry
★ Water treatment industry
★ Iron and steel enterprises
★ Wet/semi-dry desulfurization circulating pump
★ Chemical and other enterprises
