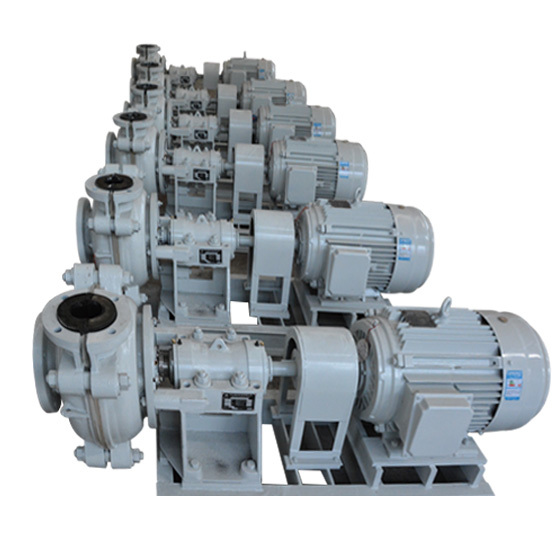

DMR Slurry Pump

1. The double pump casing structure has high efficiency and stable wear resistance.
2. Wear-resistant rubber can be used for lining and impeller materials with strong interchangeability of parts.
3. The outlet direction of the pump can be rotated at 45 intervals at eight different angles for installation and use.
4. Multi-stage series can be driven by belt and direct transmission.
5. Packing seal, auxiliary impeller seal or mechanical seal can be used for shaft seal.
6. The rotating direction of the pump is clockwise from the driving end.

Email:

Phone:

隐藏域元素占位

Parameters and Selection

25X20DM-A

75X50DM-B

100X75DM-C

150X100DM-D

200X150DM-E

250X200DM-E

300X250DM-S

350X300DM-S

400X350DM-S

450X400DM-ST

450X400DMR-ST

500X450DM-ST

500X450DMR-ST

650X550DM-TU

650X550DMR-TU

Model

25X20DM-A

Capacity

2.34~10.8 m³/h

Head(TDH)

6~37 m

Allowable Max. Power

7.5 kW

Speed

1400~3000 r/min

NPSH

Max. Efficiency

30%

Model

75X50DM-B

Capacity

16.2~76 m³/h

Head(TDH)

9~44 m

Allowable Max. Power

15 kW

Speed

1400~2800 r/min

NPSH

Max. Efficiency

55%

Model

100X75DM-C

Capacity

18~151 m³/h

Head(TDH)

4~45 m

Allowable Max. Power

30 kW

Speed

900~2400 r/min

NPSH

Max. Efficiency

57%

Model

150X100DM-D

Capacity

50~252 m³/h

Head(TDH)

7~46 m

Allowable Max. Power

60 kW

Speed

800~1800 r/min

NPSH

2~3.5 m

Max. Efficiency

60%

Model

200X150DM-E

Capacity

115~486 m³/h

Head(TDH)

12~51.5 m

Allowable Max. Power

120 kW

Speed

800~1500 r/min

NPSH

2~6 m

Max. Efficiency

65%

Model

250X200DM-E

Capacity

234~910 m³/h

Head(TDH)

9.5~40 m

Allowable Max. Power

120 kW

Speed

600~1100 r/min

NPSH

3~6 m

Max. Efficiency

64%

Model

300X250DM-S

Capacity

396~1425 m³/h

Head(TDH)

8~30 m

Allowable Max. Power

120 kW

Speed

500~800 r/min

NPSH

2~10 m

Max. Efficiency

77%

Model

350X300DM-S

Capacity

468~2538 m³/h

Head(TDH)

8~60 m

Allowable Max. Power

560 kW

Speed

400~950 r/min

NPSH

2~10 m

Max. Efficiency

79%

Model

400X350DM-S

Capacity

650~2800 m³/h

Head(TDH)

10~59 m

Allowable Max. Power

560 kW

Speed

400~840 r/min

NPSH

3~10 m

Max. Efficiency

81%

Model

450X400DM-ST

Capacity

720~3312 m³/h

Head(TDH)

7~51 m

Allowable Max. Power

560 kW

Speed

300~700 r/min

NPSH

2~10 m

Max. Efficiency

80%

Model

450X400DMR-ST

Capacity

756~3312 m³/h

Head(TDH)

7~37.5 m

Allowable Max. Power

560 kW

Speed

6300~600 r/min

NPSH

2~8 m

Max. Efficiency

85%

Model

500X450DM-ST

Capacity

1008~4356 m³/h

Head(TDH)

9~48 m

Allowable Max. Power

560 kW

Speed

300~600 r/min

NPSH

2~9 m

Max. Efficiency

80%

Model

500X450DMR-ST

Capacity

1080~4356 m³/h

Head(TDH)

9~40 m

Allowable Max. Power

560 kW

Speed

300~550 r/min

NPSH

3~10 m

Max. Efficiency

87%

Model

650X550DM-TU

Capacity

1980~7920 m³/h

Head(TDH)

10~50 m

Allowable Max. Power

1200 kW

Speed

250~475 r/min

NPSH

4~10 m

Max. Efficiency

86%

Model

650X550DMR-TU

Capacity

1980~7920 m³/h

Head(TDH)

10~50 m

Allowable Max. Power

1200 kW

Speed

250~475 r/min

NPSH

4~10 m

Max. Efficiency

86%

Application and Reference

DMR pumps are suitable for conveying low-abrasive, low-concentration slurries in metallurgy, mining, coal, building materials and other industrial sectors.

Typical Application:

★ Iron ore beneficiation plant
★ Copper beneficiation plant
★ Gold ore beneficiation plant
★ Molybdenum beneficiation plant
★ Potassium fertilizer plant
★ Other mineral processing plants
★ Aluminum oxide industry
★ Coal washing plant
★ Power plant
★ Sand excavation
★ Building materials industry
★ Chemical Industry
★ Other industries

DMR slurry pump structure

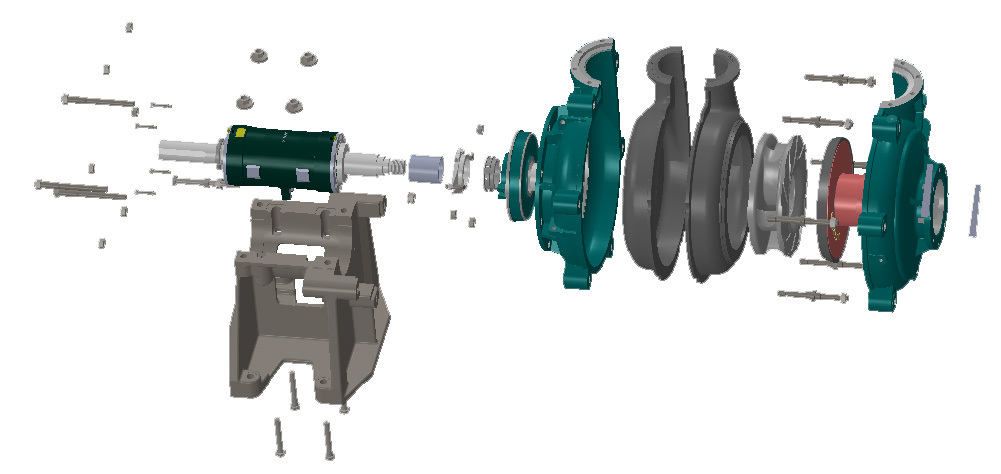

DMR 3D Structure

The axially split pump casing is used to bear pressure and the inner lining is wear-resistant. The rubber inner lining is easy to disassemble and replace. The back vane reduces the sealing pressure and can minimize the backflow.

Bearing Assembly

The pump shaft has a large diameter and a heavy-duty cylindrical structure, which is small in size and occupies a small area. Grease lubrication is adopted, so there is no risk of oil leakage, the maintenance is minimal, the rotor is easy to adjust, and it can be used in series.


Packing Seal	Expeller Seal

Packing seal: conventional shaft seal, suitable for various working conditions, can be equipped with special materials such as polytetrafluoroethylene packing, graphite packing, etc., for corrosive or high temperature conditions. Can be equipped with spray-welded ceramic sleeve, suitable for strong abrasive conditions.

Auxiliary impeller dynamic seal: use the pressure seal generated by the impeller and the auxiliary impeller in series, and the packing or lip seal ring is used as the parking seal.

Mechanical seal: internationally leading sealing technology, leak-free sealing effect. Containerized structure, easy installation and replacement, different structural forms are suitable for different working conditions. The friction pair material is made of high-hardness ceramic and alloy materials. The design and matching of mechanical seal and sealing box conform to the flow state of the medium, so it has high wear resistance and shock resistance, and can ensure customer satisfaction under various harsh working conditions.
