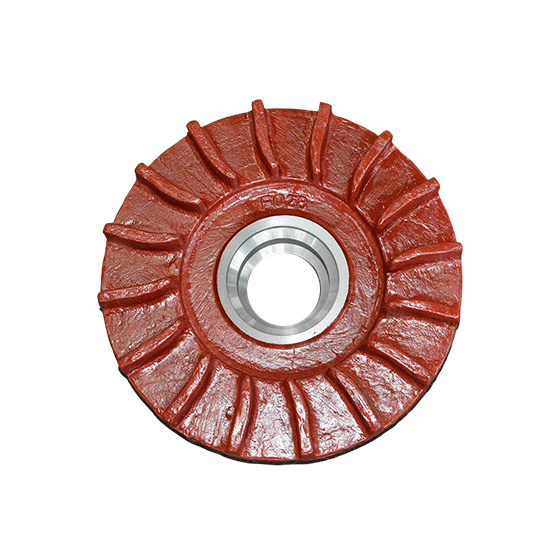

Auxiliary impeller

The seal of auxiliary impeller of slurry pump is sealed by hydrodynamic action, which belongs to non-contact seal. Air or water produces pressure under the rotating action of the auxiliary impeller, and forms a balance of air or water slurry with the slurry on the outer edge of the auxiliary impeller, thus resisting the external leakage of the liquid at the outlet of the main impeller.

The sealing type of the auxiliary impeller is composed of pressure relief cover, auxiliary impeller, water seal ring, packing, packing gland, shaft sleeve assembly, etc., which is also a wearing part of the slurry pump. The material of the auxiliary impeller of the slurry pump is generally cast iron, and high chromium alloy and rubber can also be selected.

The auxiliary impeller is mainly used to seal the liquid containing impurities at low pressure, and the disadvantage is that the power consumption is large. The auxiliary impeller seal has two structural forms, that is, the auxiliary impeller seal of the metal decompression cover and the auxiliary impeller seal of the rubber decompression cover, and the former is generally more common.

Auxiliary vane shaft seal: When the positive pressure value at the pump inlet is not greater than 10% of the pump outlet pressure value, the single-stage pump or the first stage pump in series can use the auxiliary vane shaft seal. The auxiliary vane shaft seal has the advantages of not requiring shaft seal water, not diluting pulp, and good shaft seal effect.

Email:

Phone:

隐藏域元素占位

Parameters and Selection

Impeller

Sheath

Front fender

Rear protection plate

Pump cover

Pump casing

Auxiliary impeller

Decompression cover, stuffing box

Shaft sleeve

Shaft

Water-sealed cup

Bearing assembly

Bracket

Other pump parts

Model

Impeller

Capacity

N/A

Head(TDH)

N/A

Allowable Max. Power

N/A

Speed

N/A

NPSH

N/A

Max. Efficiency

N/A

Model

Sheath

Capacity

N/A

Head(TDH)

N/A

Allowable Max. Power

N/A

Speed

N/A

NPSH

N/A

Max. Efficiency

N/A

Model

Front fender

Capacity

N/A

Head(TDH)

N/A

Allowable Max. Power

N/A

Speed

N/A

NPSH

N/A

Max. Efficiency

N/A

Model

Rear protection plate

Capacity

N/A

Head(TDH)

N/A

Allowable Max. Power

N/A

Speed

N/A

NPSH

N/A

Max. Efficiency

N/A

Model

Pump cover

Capacity

N/A

Head(TDH)

N/A

Allowable Max. Power

N/A

Speed

N/A

NPSH

N/A

Max. Efficiency

N/A

Model

Pump casing

Capacity

N/A

Head(TDH)

N/A

Allowable Max. Power

N/A

Speed

N/A

NPSH

N/A

Max. Efficiency

N/A

Model

Auxiliary impeller

Capacity

N/A

Head(TDH)

N/A

Allowable Max. Power

N/A

Speed

N/A

NPSH

N/A

Max. Efficiency

N/A

Model

Decompression cover, stuffing box

Capacity

N/A

Head(TDH)

N/A

Allowable Max. Power

N/A

Speed

N/A

NPSH

N/A

Max. Efficiency

N/A

Model

Shaft sleeve

Capacity

N/A

Head(TDH)

N/A

Allowable Max. Power

N/A

Speed

N/A

NPSH

N/A

Max. Efficiency

N/A

Model

Shaft

Capacity

N/A

Head(TDH)

N/A

Allowable Max. Power

N/A

Speed

N/A

NPSH

N/A

Max. Efficiency

N/A

Model

Water-sealed cup

Capacity

N/A

Head(TDH)

N/A

Allowable Max. Power

N/A

Speed

N/A

NPSH

N/A

Max. Efficiency

N/A

Model

Bearing assembly

Capacity

N/A

Head(TDH)

N/A

Allowable Max. Power

N/A

Speed

N/A

NPSH

N/A

Max. Efficiency

N/A

Model

Bracket

Capacity

N/A

Head(TDH)

N/A

Allowable Max. Power

N/A

Speed

N/A

NPSH

N/A

Max. Efficiency

N/A

Model

Other pump parts

Capacity

N/A

Head(TDH)

N/A

Allowable Max. Power

N/A

Speed

N/A

NPSH

N/A

Max. Efficiency

N/A

Application and Reference

Dredging pump are widely used in the mining, coal washing, power plant, metallurgy, petrochemical, building material, dredging, and other industrial departments, etc. It is used in the various working sites including hydrocyclone feeding pump, magnetic separator feeding pump, underflow slurry pump (thickener underflow pump, filter separator underflow pump), flotation feeding pump, vibrating sieve feeding pump, shaking grading pressure pump, concentrate pump, tailing pump.
