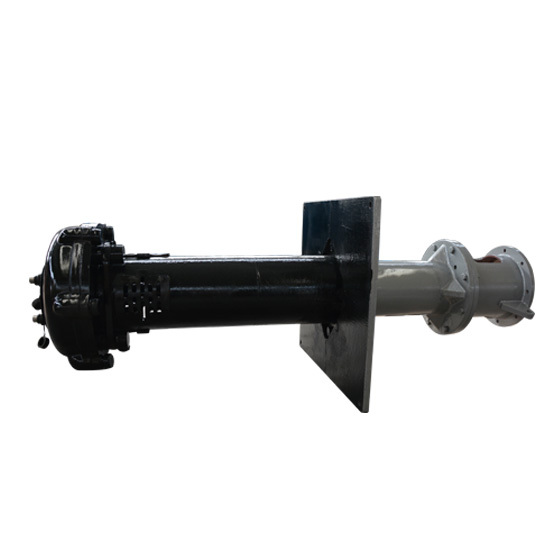

DVR Slurry Pump

1. Vertical cantilever single pump casing structure.
2. The double-suction semi-open impeller is designed with high chromium alloy, which can adjust the gap between the impeller and the rear guard plate to ensure the efficient operation of the pump.
3. No shaft seal required.
4. Direct connection or belt transmission can be used for transmission.
5. The rotating direction of the pump is clockwise from the driving end.

Email:

Phone:

隐藏域元素占位

Parameters and Selection

40(L)DV

40(L)DVR

65(L)DV

65(L)DVR

100(L)DV

100(L)DVR

150(L)DV

200(L)DV

250(L)DV

300(L)DV

Model

40(L)DV

Capacity

19~43 m³/h

Head(TDH)

4.5~28.5 m

Allowable Max. Power

15 kW

Speed

1000~2200 r/min

NPSH

Max. Efficiency

40%

Model

40(L)DVR

Capacity

18~40 m³/h

Head(TDH)

4~26 m

Allowable Max. Power

15 kW

Speed

1000~2200 r/min

NPSH

Max. Efficiency

40%

Model

65(L)DV

Capacity

23~111 m³/h

Head(TDH)

5~29.5 m

Allowable Max. Power

30 kW

Speed

700~1500 r/min

NPSH

Max. Efficiency

50%

Model

65(L)DVR

Capacity

23~105 m³/h

Head(TDH)

5.5~30.5 m

Allowable Max. Power

30 kW

Speed

500~1200 r/min

NPSH

Max. Efficiency

51%

Model

100(L)DV

Capacity

54~289 m³/h

Head(TDH)

5~35 m

Allowable Max. Power

75 kW

Speed

600~1200 r/min

NPSH

Max. Efficiency

56%

Model

100(L)DVR

Capacity

65~285 m³/h

Head(TDH)

7.5~36 m

Allowable Max. Power

75 kW

Speed

600~1200 r/min

NPSH

Max. Efficiency

62%

Model

150(L)DV

Capacity

108~480 m³/h

Head(TDH)

8.5~40 m

Allowable Max. Power

110 kW

Speed

500~1000 r/min

NPSH

Max. Efficiency

52%

Model

200(L)DV

Capacity

189~891 m³/h

Head(TDH)

6.5~37 m

Allowable Max. Power

110 kW

Speed

400~850 r/min

NPSH

Max. Efficiency

64%

Model

250(L)DV

Capacity

261~1089 m³/h

Head(TDH)

7.5~33 m

Allowable Max. Power

200 kW

Speed

400~750 r/min

NPSH

Max. Efficiency

60%

Model

300(L)DV

Capacity

288~1267 m³/h

Head(TDH)

6.5~33 m

Allowable Max. Power

200 kW

Speed

350~700 r/min

NPSH

Max. Efficiency

50%

Application and Reference

DVR pumps are suitable for conveying corrosive, coarse particles, and high-concentration slurries.

Typical Application:

★ Iron ore beneficiation plant
★ Copper beneficiation plant
★ Gold ore beneficiation plant
★ Molybdenum beneficiation plant
★ Potassium fertilizer plant
★ Other mineral processing plants
★ Aluminum oxide industry
★ Coal washing plant
★ Power plant
★ Sand excavation
★ Building materials industry
★ Chemical Industry
★ Other industries

DVR slurry pump structure

DVR 3D Structure

The DVR submersible pump is a vertical centrifugal slurry pump, immersed in liquid, used to transport corrosive, coarse particles, and high-concentration slurries. It does not require any shaft seals or shaft seal water, and can work normally even under conditions of insufficient suction. The flow-through parts are all lined with rubber, suitable for conveying abrasive slurries without edges and corners. The "L" letter in the model is a submersible pump of the extended shaft series, which can be used in conditions with deeper liquid levels. This type of pump adds a guide bearing structure on the basis of the standard, which makes the operation more stable and more widely used. However, flushing water is required at the guide bearing position.
