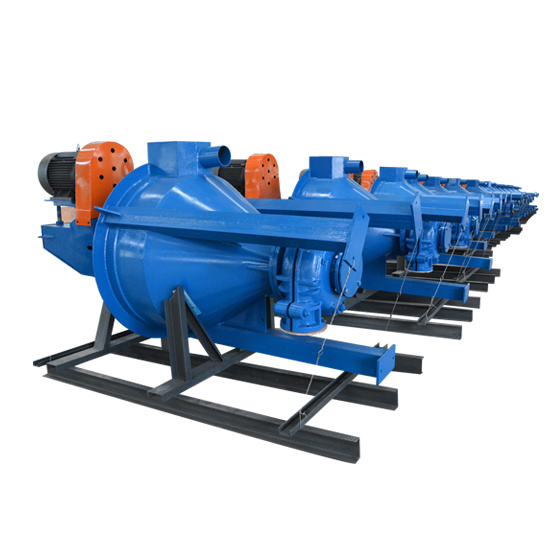

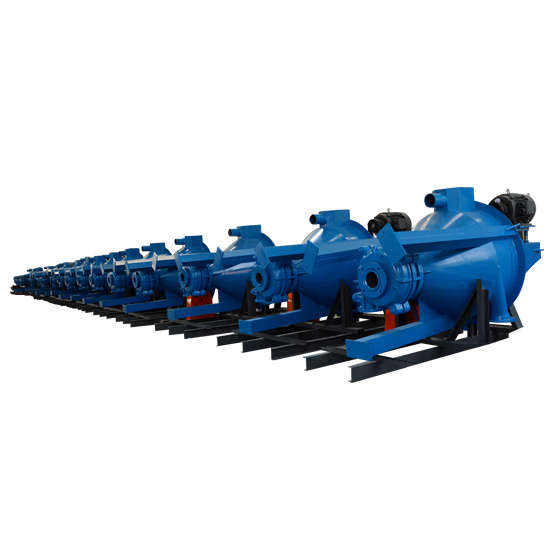

DF Slurry Pump

1. According to the structure form, it is divided into vertical and horizontal structures, all of which adopt double pump casing structure.
2. High efficiency, stable wear resistance, strong interchangeability of parts. Wear-resistant metal or rubber can be used for lining and impeller materials.
3. Vertical structure can be lined with glue without sealing material box.
4. Direct connection or belt transmission can be used for transmission.
5. The rotating direction of the pump is clockwise from the driving end.

Email:

Phone:

隐藏域元素占位

Parameters and Selection

50DF

75DF

100DF

150DF

200DF

Model

50DF

Capacity

4.3~51 m³/h

Head(TDH)

6.2~30.2 m

Allowable Max. Power

15 kW

Speed

800~1800 r/min

NPSH

Max. Efficiency

20~45%

Model

75DF

Capacity

10.8~149.4 m³/h

Head(TDH)

6.5~29.5 m

Allowable Max. Power

20 kW

Speed

700~1500 r/min

NPSH

Max. Efficiency

20~55%

Model

100DF

Capacity

10.8~212 m³/h

Head(TDH)

6.8~29.2 m

Allowable Max. Power

40 kW

Speed

500~1050 r/min

NPSH

Max. Efficiency

20~55%

Model

150DF

Capacity

36~425 m³/h

Head(TDH)

6.8~25.2 m

Allowable Max. Power

75 kW

Speed

350~680 r/min

NPSH

Max. Efficiency

20~55%

Model

200DF

Capacity

230~670 m³/h

Head(TDH)

5~24.8 m

Allowable Max. Power

75 kW

Speed

350~680 r/min

NPSH

Max. Efficiency

20~55%

Application and Reference

Used in flotation process, it is an ideal pump for conveying foamy slurries.

Typical Application:

★ Iron ore sorting plant
★ Copper concentrator
★ Gold concentrator
★ Molybdenum concentrator
★ Potash plant
★ Other mineral processing plants
★ Other industries
